Two options

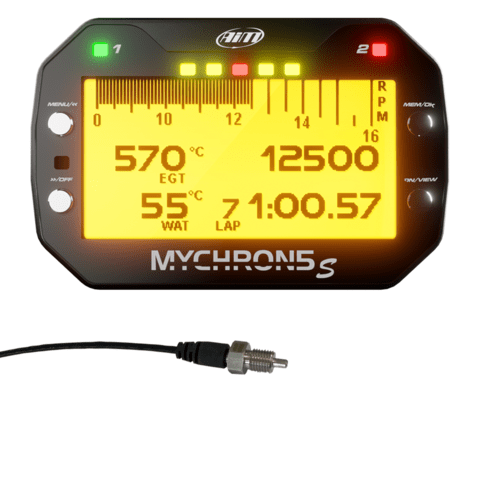

1 - Mychron 5 with water temp prob

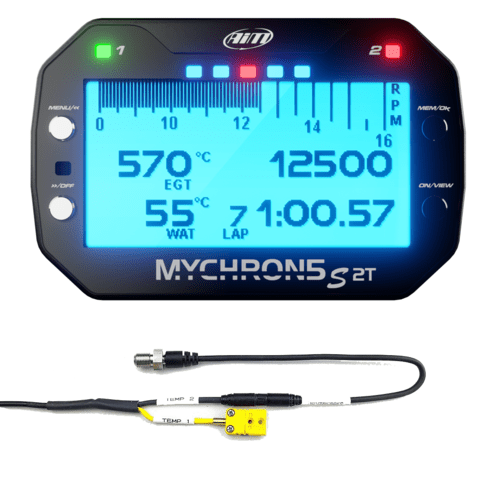

2 - Mychron 5 T2 - All the features of the MyChron5 S but with two temperature inputs
Includes temperature extension cable with connectors for connection of 2 temperature sensors. Kit Includes 1 Temp Sensor.(CHT EGT or H2O), optional extra temperature sensors available as extra.
DESCRIPTION
MyChron5 S is an integrated High Technology Dash Logger for Kart drivers, Boats, Bikes and Speedway.
A robust housing with
– wider display
– Integrated GPS inside the MyChron5
– Wide display with configurable multicolour backlight
– Graphical display resolution
– Completely configurable pages
– Calculated Gear Number
– 2 freely configurable RGB Alarm LEDs
– 5 freely configurable RGB Shift Light LEDs
– Nylon body
– Metallic pushbuttons
– Rechargeable Lithium Iones Battery
– WiFi connection
– Fully compatible with MyChron4 add-ons (except M4 Steering Wheel)
– Waterproof IP65
The MyChron5 S GpS takes advantage from an internal wide track dbase, in order to automatically understand in which track you are, where and how many are the magnetic strips: without any further sensor or configuration you will automatically get lap times, predictive lap times and split times. GPS data, acquired ten times per second, are of course recorded with other signals in the internal datalogger, in order to offer the possibility of a deep analysis of your performance. The new Nylon chassis with metallic pushbuttons guarantees even more resistance to shocks and water. The anti-scratch non-reflecting polycarbonate screen and the wider display ensure great readability.
Completely configurable pages
Define as many pages as you wish, showing graphic bars or just digits, via software or directly on your system.
Rechargeable Lithium
MyChron5 is powered by a dedicated rechargeable – and removable – lithium battery. It is long-lasting (about 10 hours duration) and easy to recharge, placed on its magnetic basement connected to the power adapter.
Ambient Light Sensor
MyChron5 S provides optimum viewing in diverse lighting conditions: the display brightness is automatically adjusted according to the environment light.
Calculated Gear Number
In case your kart is a shift kart, you can decide to show the gear number, automatically calculated in a few hundredths of meters while you are driving. Five RGB shift lights can be configured for each gear, choosing LED color and RPM threshold values which will turn them on/off. They also allow RPM monitoring in a glance.
Even alarms are managed in a very flexible way: you choose the situation that generates the alarm, the LED behaviour (blinking frequency and color) when the alarm appears and the conditions for its switch-off.
Wi-Fi connection
Download your data to your PC, look at the On Line measures, upgrade your firmware, transmit parameters using the well known Data Key or through fast WiFi connection.
Wide display with configurable multicolour backlight.
